S686 Bearing
video

S686 Bearing

Size: length*width*height 6*13*3.5 (mm), the size can be customized according to customer needs.
Send Inquiry

Description

Technical Parameters

Size: length*width*height 6*13*3.5 (mm), the size can be customized according to customer needs.

Material: stainless steel 304, stainless steel 420, stainless steel 440, stainless steel 316, the material can be customized according to customer needs.

Under a certain load, the number of revolutions or hours experienced by the bearing before pitting occurs is called the bearing life.



Neutral salt spray certification for 260 hours.

Ball bearing salt spray certification test is tested in accordance with ISO 9227 standards



68

Shield

2

304/201/301+NBR

07

retainer

2

PA66+GF25

04

Ball S 5.556

2X7

AISI 440

02

Inner ring

1

AISI 440

01

Outer ring

1

AISI 440



Hot Tags: s686 bearing, China s686 bearing manufacturers, suppliers, factory, 1 8 steel ball, S699 Bearing, ntn stainless steel bearings, 5 8 inch steel balls, S608 Bearing, 2 steel ball

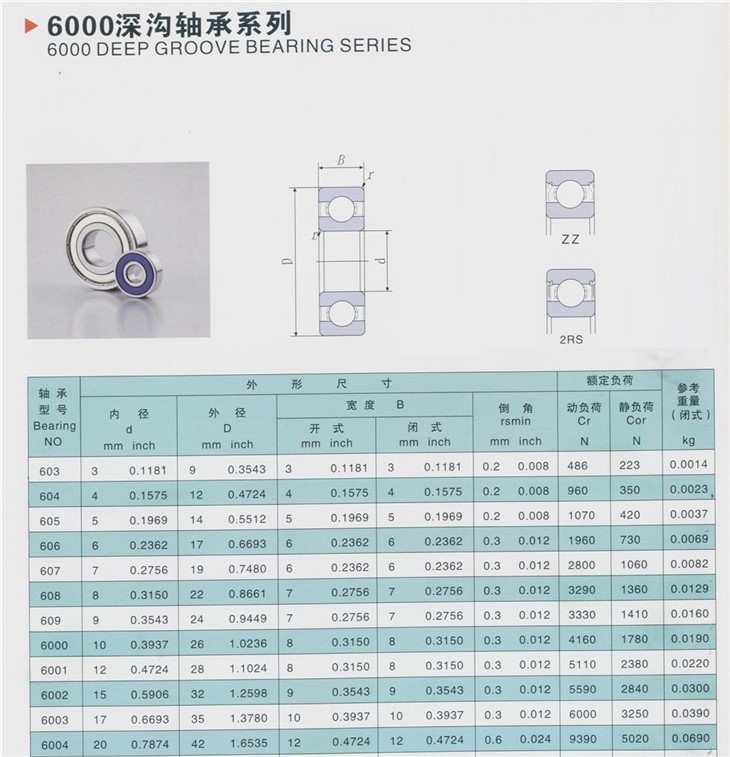

1----12

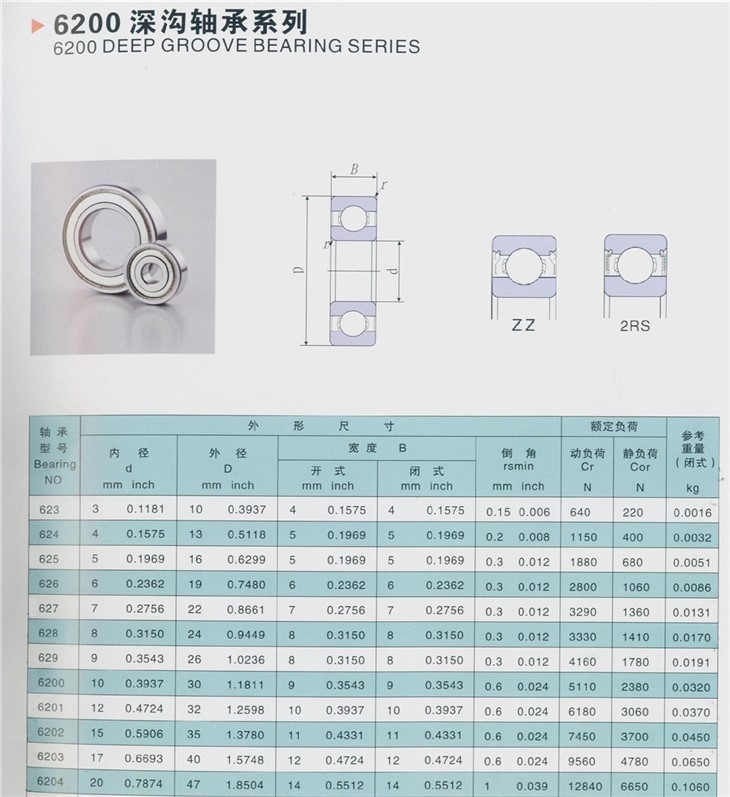

13----24

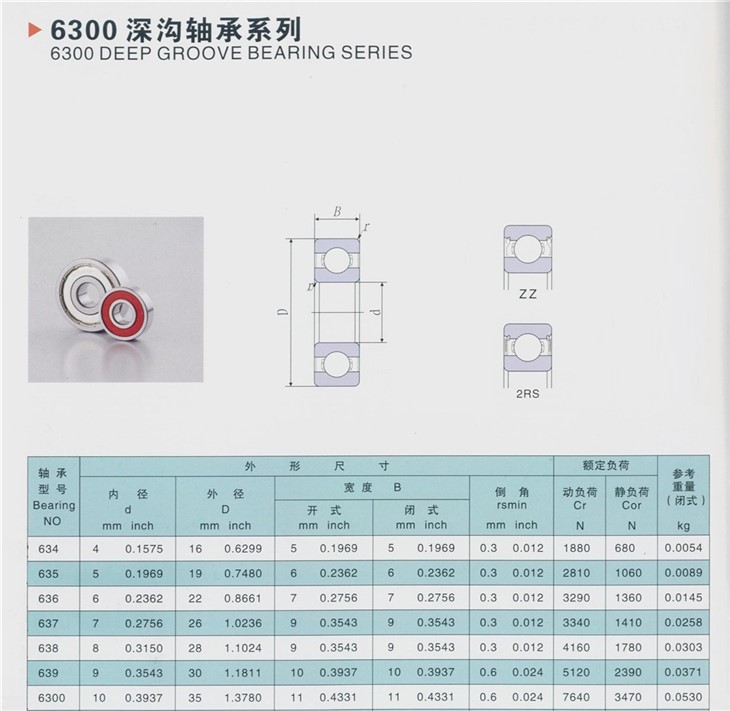

25----31
