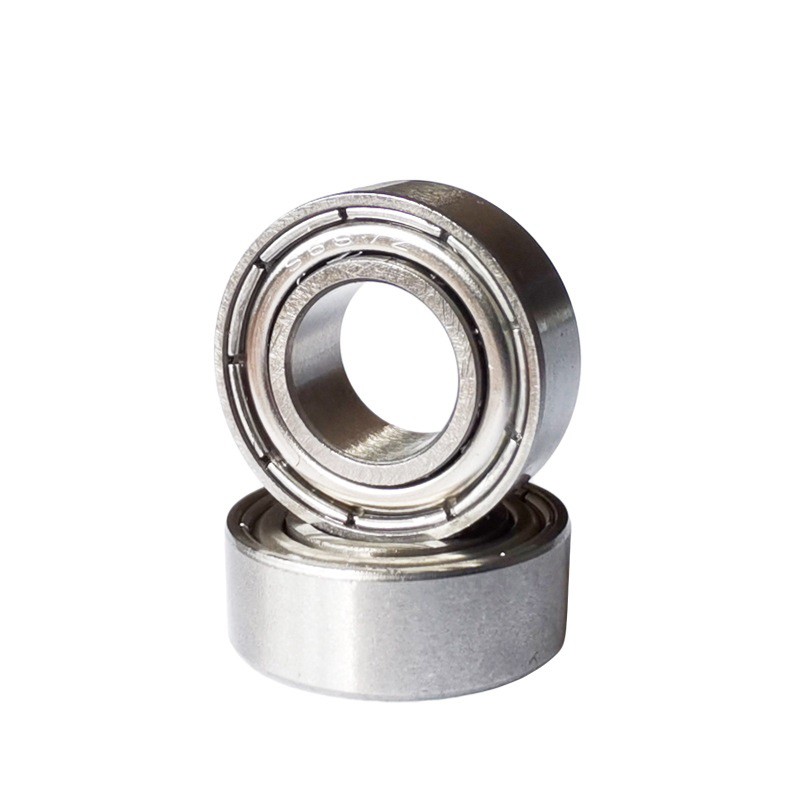

S687 Bearing
video

S687 Bearing

Size: length*width*height 7*14*3.5 (mm), the size can be customized according to customer needs.
Send Inquiry

Description

Technical Parameters

Size: length*width*height 7*14*3.5 (mm), the size can be customized according to customer needs.

Material: stainless steel 304, stainless steel 420, stainless steel 440, stainless steel 316, the material can be customized according to customer needs.

Uses: medical equipment, brushless motors, fan motors, precision instruments, gearboxes, household appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, roller skates, office equipment, currency counters, mechanical equipment, fitness equipment, bladeless fan motor bearings, remote control cars, pulleys, industrial sewing machines, wall breaking machines, juicers, sweeping robots, toys
In order to determine the standard of bearing life, the bearing life is related to the reliability.


Neutral salt spray certification for 260 hours.

Ball bearing salt spray certification test is tested in accordance with ISO 9227 standards



68

Shield

2

304/201/301+NBR

07

retainer

2

PA66+GF25

04

Ball S 5.556

2X7

AISI 440

02

Inner ring

1

AISI 440

01

Outer ring

1

AISI 440



Hot Tags: s687 bearing, China s687 bearing manufacturers, suppliers, factory, sr8rs bearing, 3 8 stainless steel ball bearings, 8 x 19 x 6 sealed stainless steel bearings, stainless steel rod end bearings, inox bearing, S628 Bearing

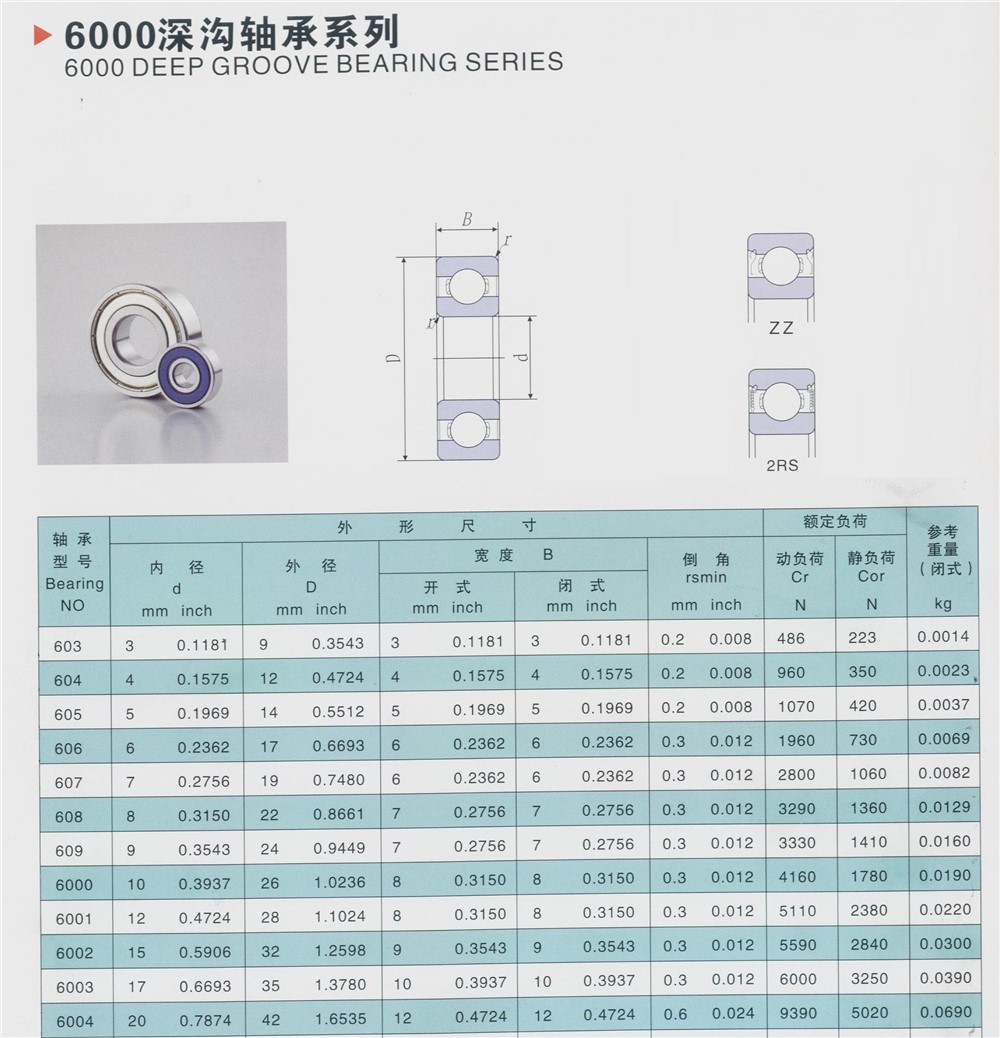

1----12

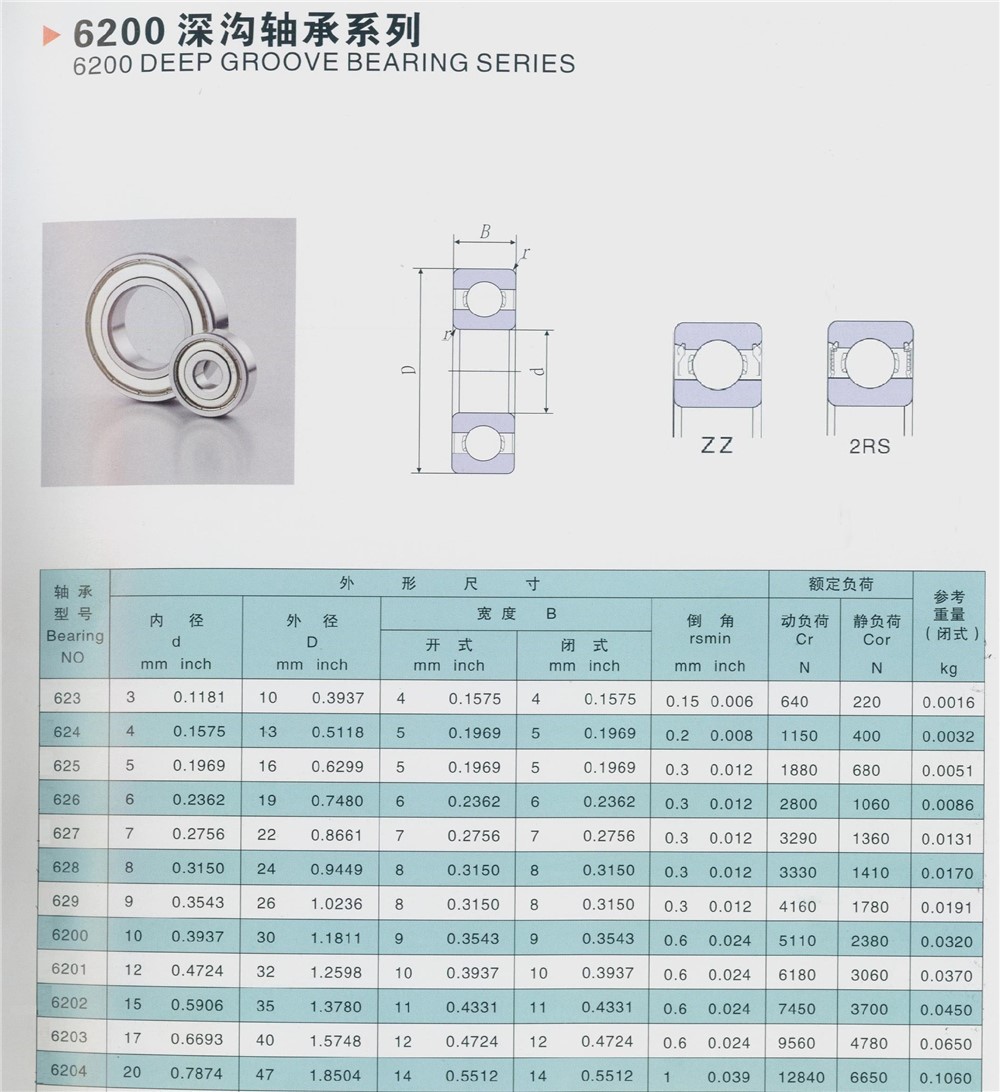

13----24
