S697 Bearing

Size: length*width*height 7*17*5 (mm), the size can be customized according to customer needs. Material: stainless steel 304, stainless steel 420, stainless steel 440, stainless steel 316, the material can be customized according to customer needs. According to the number of rows of rolling...
Send Inquiry

Description

Technical Parameters

Size: length*width*height 7*17*5 (mm), the size can be customized according to customer needs.

Material: stainless steel 304, stainless steel 420, stainless steel 440, stainless steel 316, the material can be customized according to customer needs.

According to the number of rows of rolling elements, it is divided into single-row bearings, double-row bearings and multi-row bearings.



Neutral salt spray certification for 260 hours.

Ball bearing salt spray certification test is tested in accordance with ISO 9227 standards



68

Shield

2

304/201/301+NBR

07

retainer

2

PA66+GF25

04

Ball S 5.556

2X7

AISI 440

02

Inner ring

1

AISI 440

01

Outer ring

1

AISI 440



Hot Tags: s697 bearing, China s697 bearing manufacturers, suppliers, factory, sr8 2rs bearing, S638 Bearing, steel bearings, S694 Bearing, 2 5 inch steel ball, S6901 Bearing

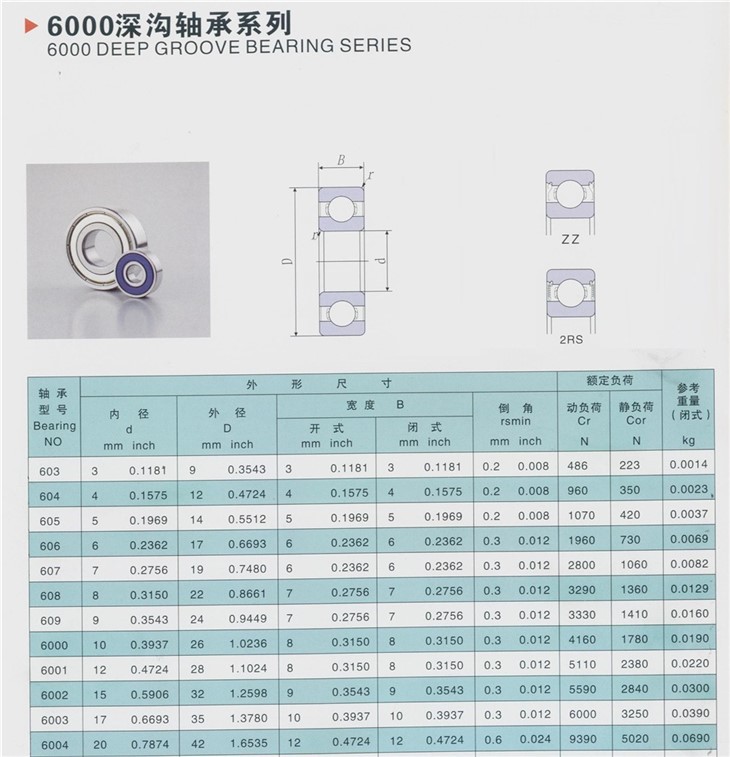

1----12

13----24

25----31

32----43

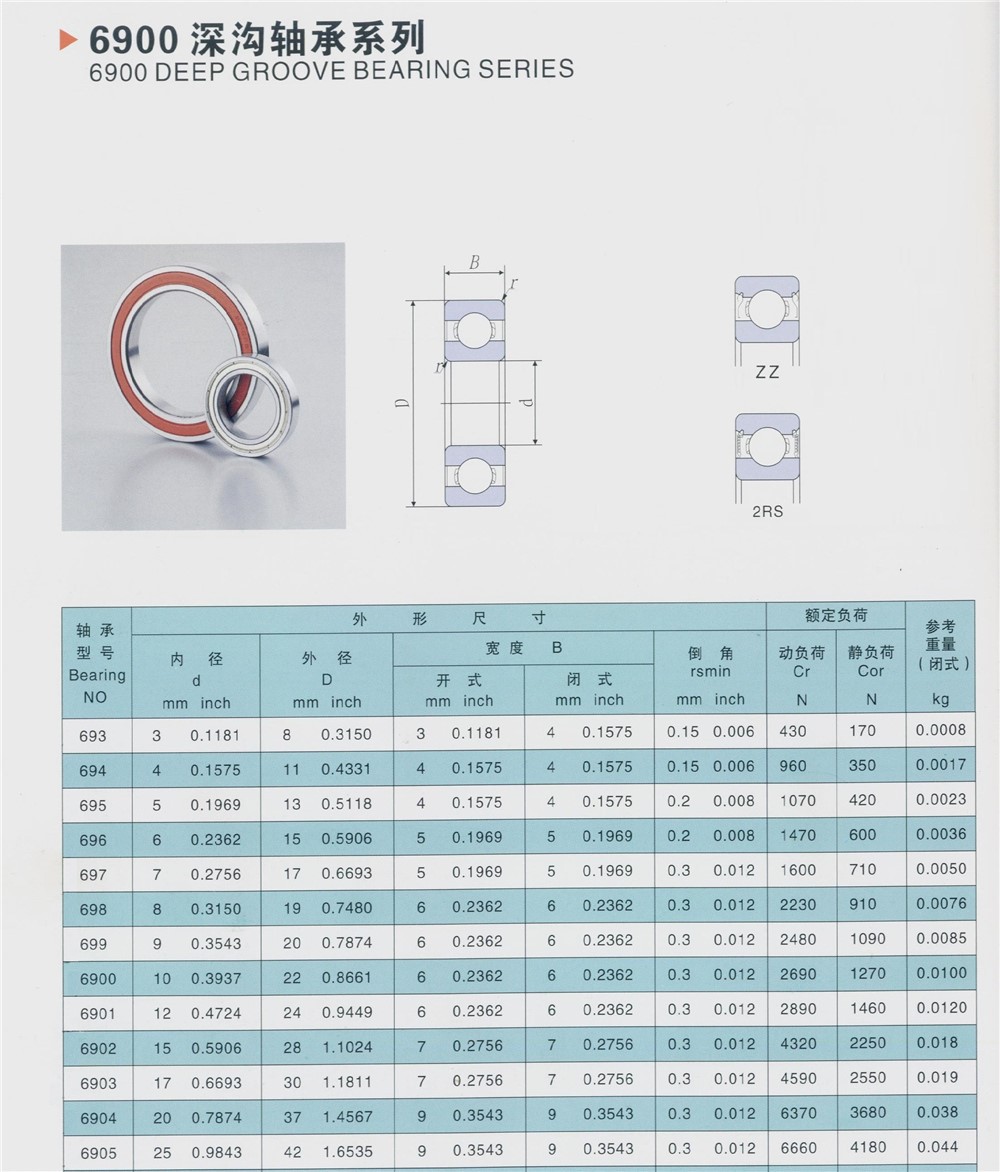

44----56
