S6905 Bearing
video

S6905 Bearing

Size: length*width*height 25*42*9 (mm), the size can be customized according to customer needs.
Send Inquiry

Description

Technical Parameters

Uses: wall breaking machines, juicers, sweeping robots, toys

Size: length*width*height 25*42*9 (mm), the size can be customized according to customer needs.

Material: stainless steel 304, stainless steel 420, stainless steel 440, stainless steel 316, the material can be customized according to customer needs.



Neutral salt spray certification for 260 hours.

Ball bearing salt spray certification test is tested in accordance with ISO 9227 standards



68

Shield

2

304/201/301+NBR

07

retainer

2

PA66+GF25

04

Ball S 5.556

2X7

AISI 440

02

Inner ring

1

AISI 440

01

Outer ring

1

AISI 440



Angular contact ball bearings

Generally, it is customary to call the six types of bearings represented by 36 and 46 bearings, and the angular contact is generally 15 degrees, 25 degrees, 45 degrees, etc.



Hot Tags: s6905 bearing, China s6905 bearing manufacturers, suppliers, factory, S635 Bearing, 2 inch steel ball, S699 Bearing, S624 Bearing, skf stainless steel ball bearings catalog, lazy susan bearing stainless steel

1----12

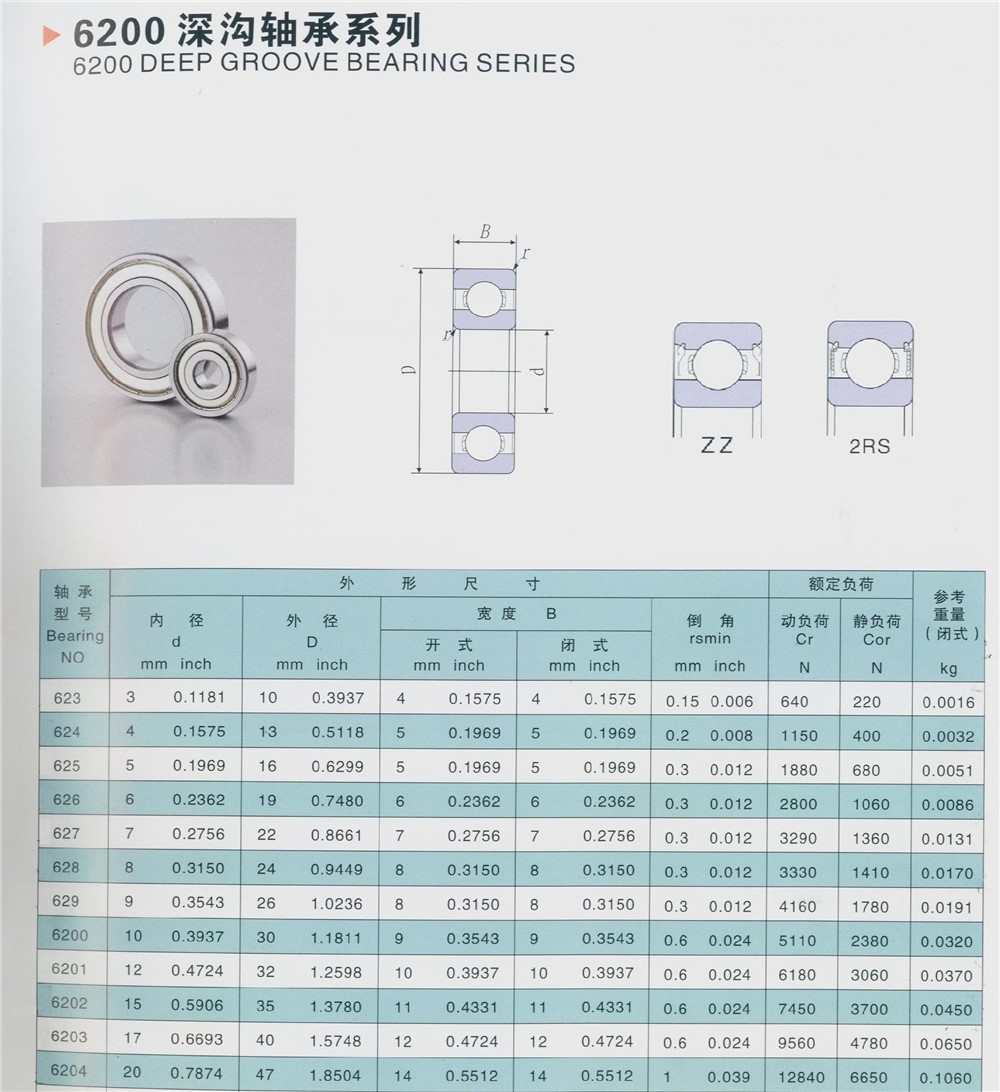

13----24

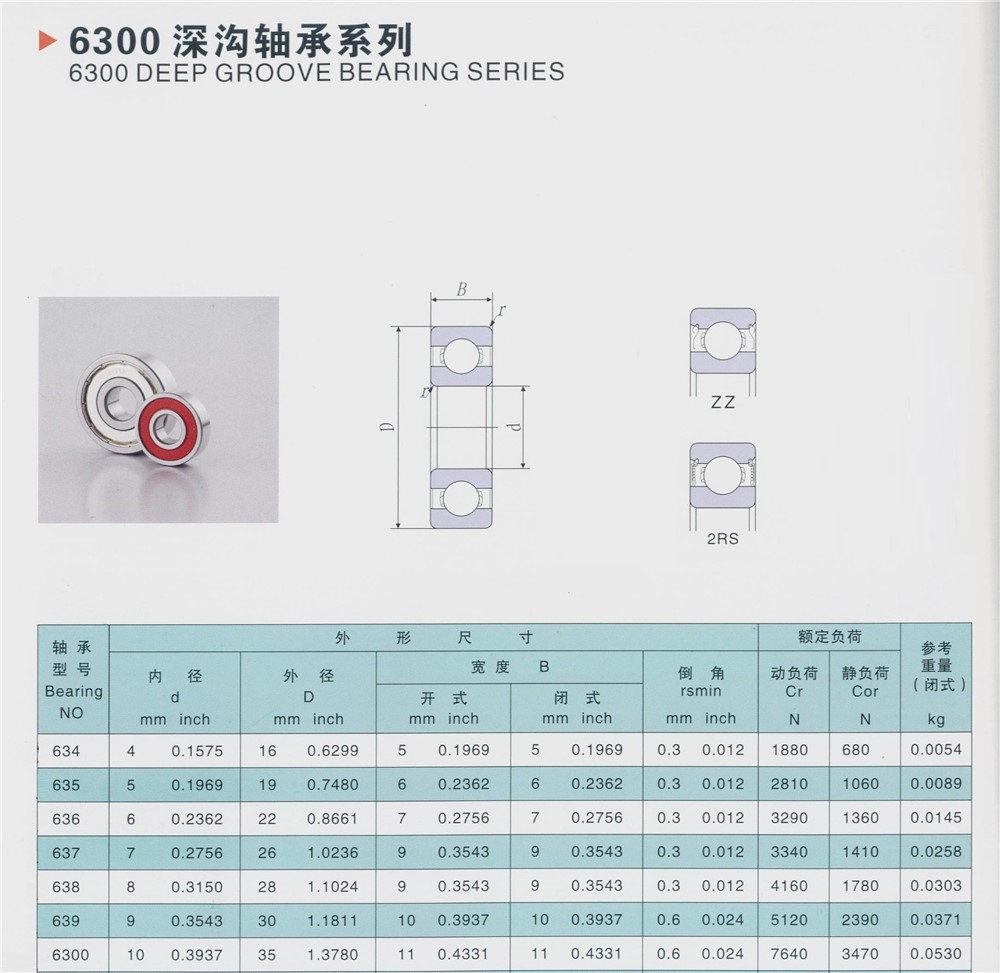

25----31

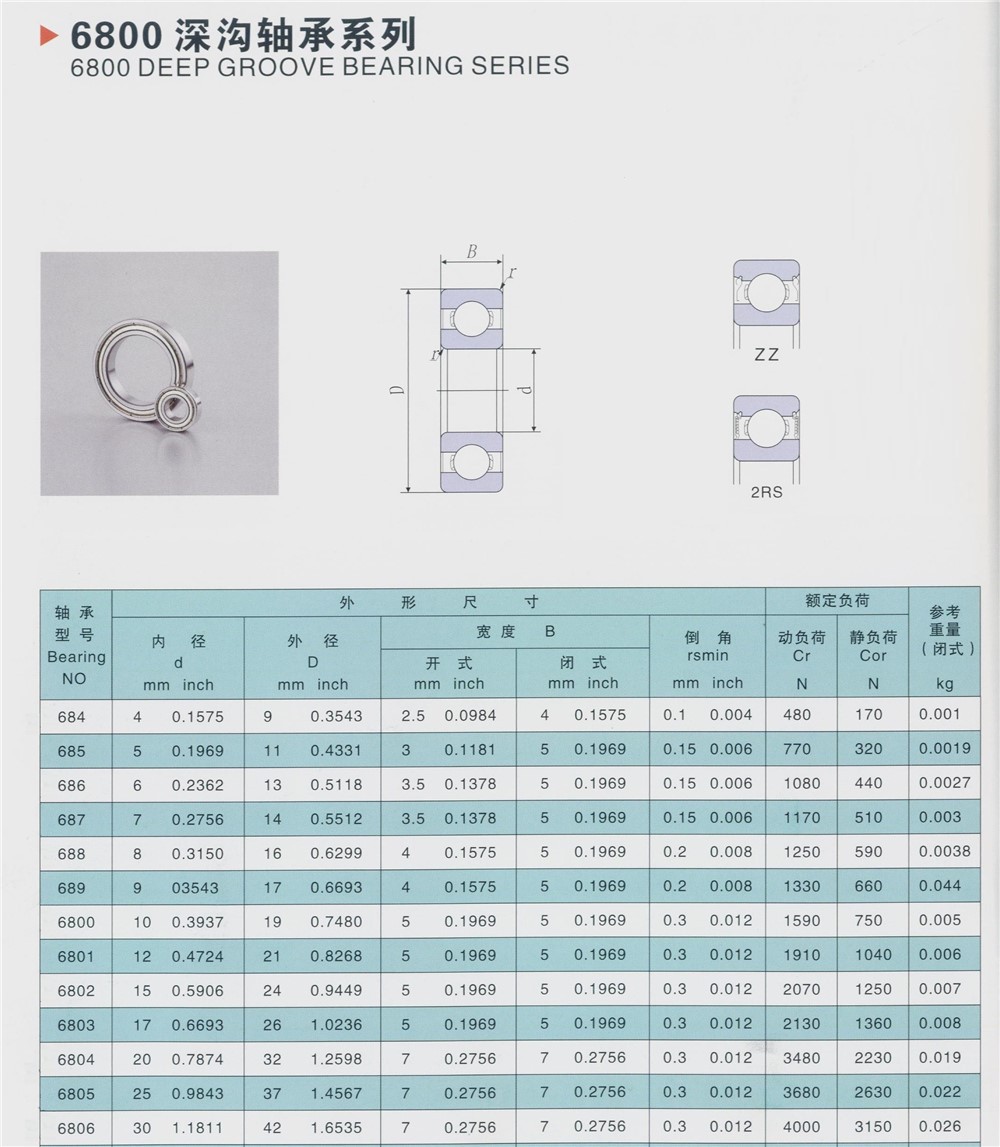

32----43
